40-80 Horsepower

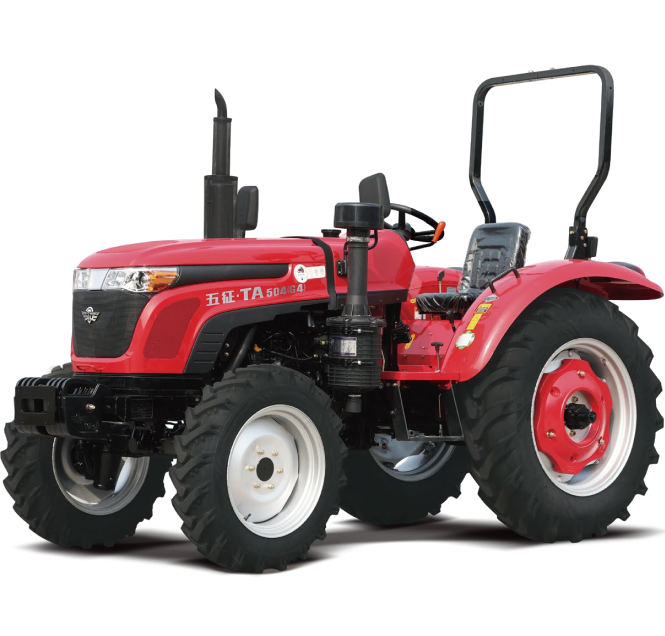

TA 504
-
36.8kwEngine power
-
>100LFuel tank
-
N+Customized operating situations

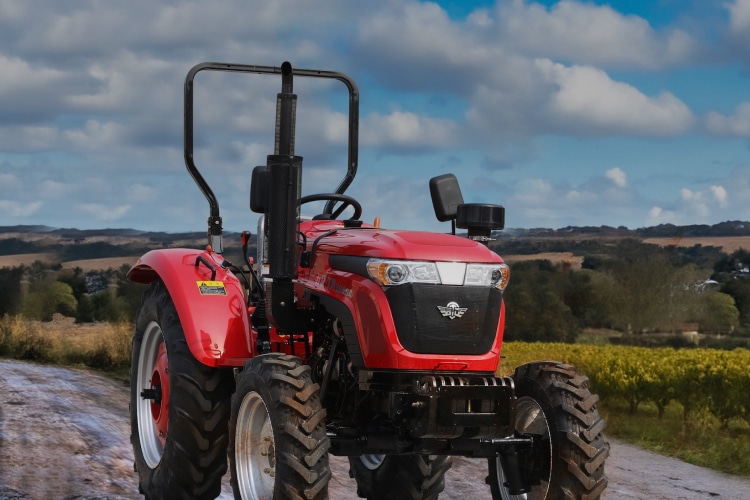

The TA series tractors are compact and offer customers comfort and convenience to satisfy a wide range of demands.
-

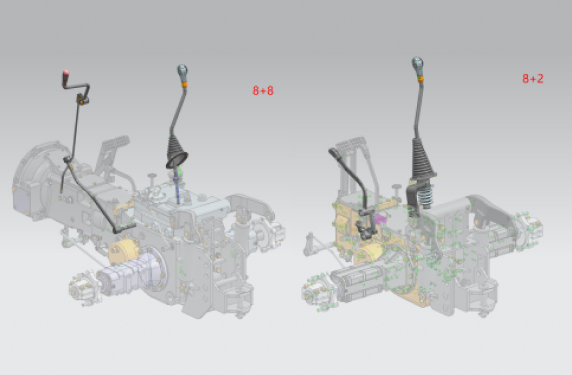

Gear at Your ChoiceOffers three gear choices: 8+2 and 8+8, ensuring adaptability to various work demands.
-

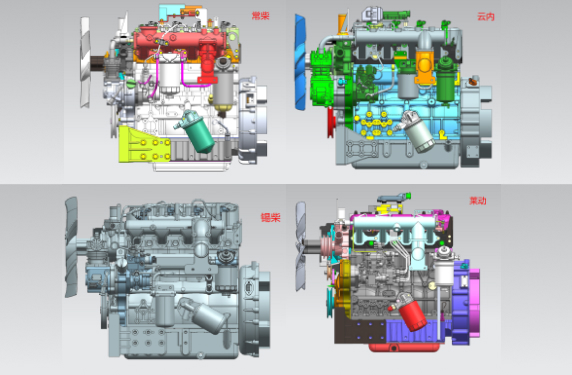

Diverse choicesA variety of well-known engine brands are available to meet your numerous demands.
-

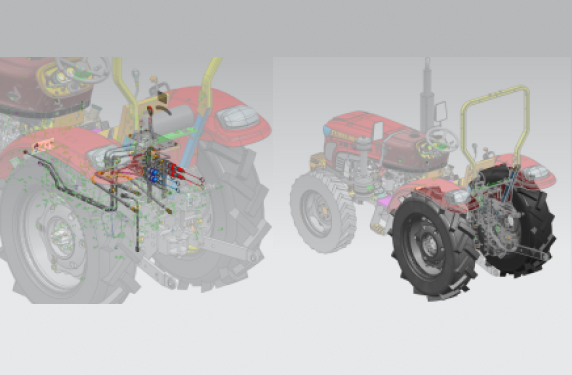

Extensive configurationsone group or two groups of hydraulic outputs, various models of dry and wet field tires available.
-

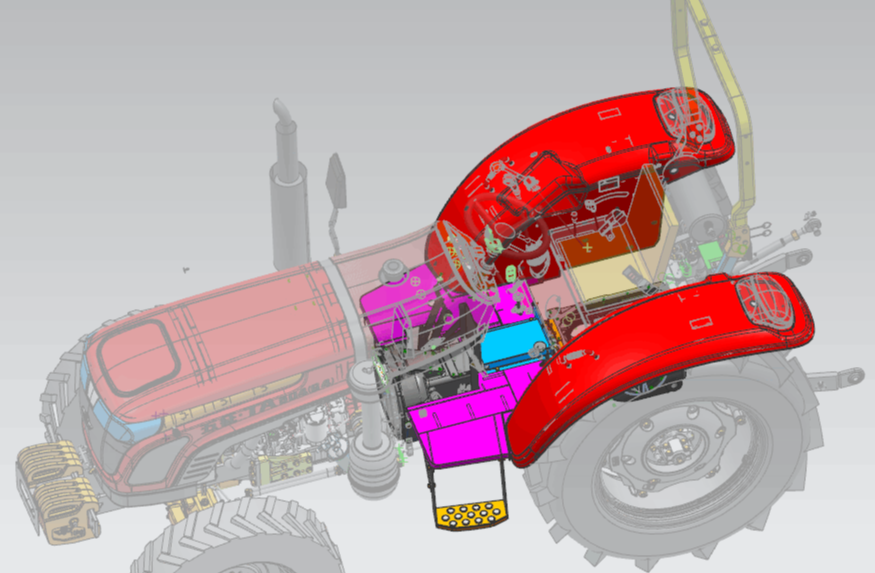

Comfortable driving and ridingEquipped with integrated bottom plate, large driving and riding space.
-

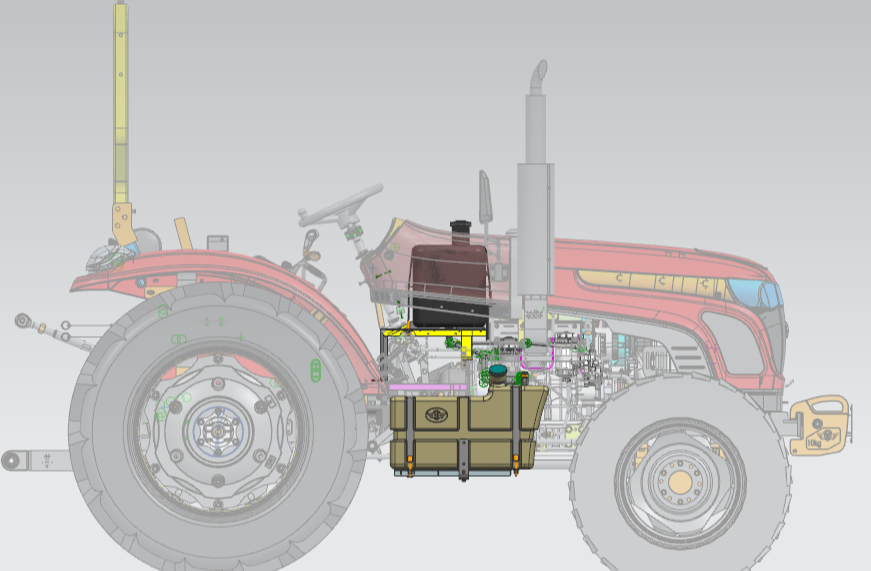

Guaranteed Operating TimeCapable of continuous operation for up to 12 hours. Single or dual fuel tank options available for optimal efficiency.
Technical specification
| Item | Unit | Parameter |
| Machine model and name | / | TA504 wheeled tractor |
| External dimensions of machine (L×W×H) | mm | 3500×1545×2350(safety frame) |
| Wheelbase or ground contact length of tracks | mm | 1940 |
| Wheeltrack (front/rear) | mm | 910、960、1100、1200、1300/910-1400 |
| mm | 390（front drive axle） | |
| Minimum useable mass | kg | 1650 |
| Standard counterweight (front/rear) | kg | 80/100 |
| Number of gears | / | August 8 |
| Engine model | / | 4G29-50G410E1/YN25NAF4/4DW96-50GBG42/4L28P50 |
| Structural type of engine | / | In-line, water-cooled, four-stroke |
| Engine manufacturer | / | Changchai Co., Ltd. /Shandong Yunnei Power Co., Ltd./FAW Jiefang Automobile Co., Ltd./ Wuxi Diesel Engine Works/Shandong Huayuan Laidong Engine Co., Ltd. |
| Engine intake method | / | Naturally aspirated |
| Number of engine cylinders | / | 4 |
| Rated engine power | kW | 36.8 |
| Rated net engine power | kW | 36.8 |
| Rated engine speed | r/min | 2400 |
| Engine cooling method | / | Water-cooled |
| Tire model (front) | / | Front wheel：6.00-16、6.50-16、7.50-16、8.3-20 |
| Tire model (rear) | / | Rear wheel：9.5-24、9.5-28、11.2-24、11.2-28、12.4-28 |
| Hydraulic suspension system type | / | Split |
| Suspension type | / | Rear-mounted three-point suspension |
| Suspension device type | / | Class 1 |
| Model of work unit hydraulic oil pump | / | CNB-F310 |
| Number of hydraulic output types | / | One group or two groups |
| Number of power output shaft splines | / | 6 |
| Standard speed of power output shaft | r/min | 540/720 |
| Transmission ratio of power output shaft | / | 3.38/2.73 |
